X-Ray Tube Stands
For X-ray examination of large animals. GMM’s wide range of ceiling and floor-based X-ray tube stands satisfy different structural and clinical needs.
The optional auto-tracking function automatically ensures the proper synchronization between the detector and X-ray tube for the best execution of AP/PA, lateral and oblique projections.
.png)
MSP

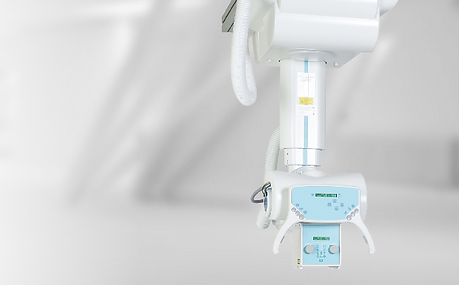

Ceiling stand designed to ensure the quickest and safest execution of any routine and specialized exams.
Available both as manual and automatic.
MCP
Compact floor stand allowing the installation in smaller rooms with low ceiling height. The reduced footprint combined with high configurability make the stand suitable for any structural requirement and operator’s needs.
Manual movings.
1. Manual vertical extension of the telescopic stands with magnetic brakes.
2. Longitudinal manual moving of the transversal bridges with travel of 275 cm and
electromagnetic brakes. The movement could be done independently or contemporarely by means of the electromagnetic clutch.
3. Manual moving of 260 cm of the stands on the transversal bridges with electromagnetic brakes.
4. Manual rotation of 90° of the tube housing in the trunnion.
5. Manual rotation of the tube and of the cassette holder around the horizontal axis with mechanical detents every 90°, stops in any position, magnetic brakes.
6. Manual rotation of the tube and of the cassette holder arms of support around the vertical axis of the telescopes with mechanical detents every 90°, stops in any position, magnetic brakes.
7. 90° of manual rotation of the cassette holder with mechanical locking every 15°.
8. Coupling by electromagnetic device of the two transversal bridges for keeping the alignment source/receptor in the longitudinal movements.
