Retrofit Digital Radiography
Reduce your workflow steps and improve your
diagnosis with the MIS Healthcare DR Retrofit Kit.
GR40CW
Enhanced Workflow

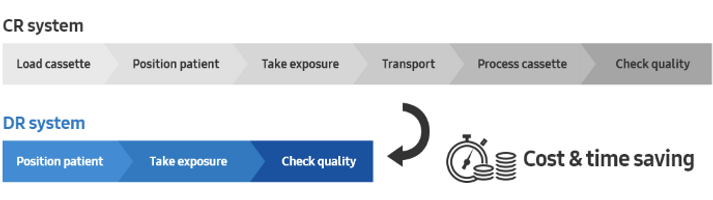

3-step Workflow
GR40CW allows users to simplify their daily routines.With GR40CW, workflow is three times faster than with CR systems and GR40CW is the same size as film/CR cassettes, allowing you to upgrade your old equipment to DR system without unnecessary hassle. Auto Exposure Detection (AED) recognizes exposure timing automatically without a cable connectionbetween the X-ray generator and detector, thus enabling simple installation. By reducing workflow steps, it reduces cost and time while increases productivity.
Fast Preview*
Preview and acquisition take less than 2 seconds, and full acquisition less than 7 seconds. It is easy to shoot multiple images after checking the preview image.
* Image acquisition time may vary according to the image processing parameters and detectors.
* Fast preview time using AccE Detector (S4343-AW, S4335-AW, S4335-AWV)
Conventional Diagnostic Use
Manual Sititching* can capture a body part that is larger than detector's area. So, viewing a larger area of the body is more convenient by capturing multiple images**.
* Option
** Two to five images available.
Intuitive User Interface

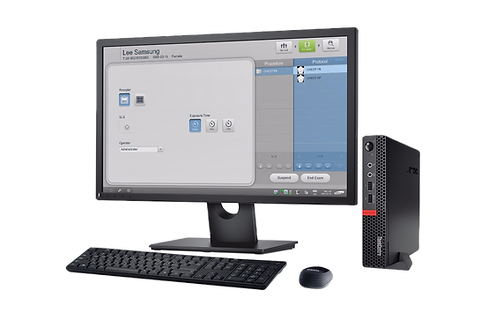

The workstation’s intuitive interface enables users to easily operate the system. Anatomical Programmed Radiography (APR) selects the appropriate imaging method for the areas being imaged to help ensure quick examinations.
The MIS Healthcare Smart R retrofit system allows simple conversion of all analogue X-ray rooms and Mobiles to the latest Digital technology. Choose from multiple wireless detector configurations and simple tablet based or desktop based workstations.
Mirror View*
Mirror View function provides secured screen sharing of GR40CW to the display device using Wi-Fi CERTIFIED Miracast™. This can help make a correct and quick decision on the x-ray image seamlessly, especially useful for the ER/OR or trauma environments, where multiple medical staff need to quickly acquire and check images in real-time. Therefore, Mirror View can reduce first aid response time and the risk of contamination in the OR room with ease of use.
* Option
* Compatible with Windows 10 only.
* Miracast receiver dongle is necessary.
* The images were taken with GM85.
* When using the Mirror View, image transmitted via Miracast is not available for the purpose of diagnosis.
Diagnostic Confidence
Bone Suppression*
Without additional setting or exposure, Bone Suppression Imaging improves the clarity of soft tissues by suppressing the appearance of bones in chest images, which improves your ability to detect nodules. You can easily create the companion image with just a click on the screen.
* Option, these Images were taken with GC85A.
SimGrid™*
With just a click, SimGrid™ allows you to provide better patient care with higher satisfaction and reduced retake rates without the use of a portable grid, It improves image contrast by reducing scatter radiation effects and creates better image quality.
* Option, these Images were taken with GM85.
S-Enhance*
To support your diagnosis, S-Enhance improves the clarity of foreign bodies (e.g. tube, line and/or needle) in images of chest, abdomen, and L-spine. With a single on-screen click, the companion image is created without additional settings or x-ray exposure, streamlining the workflow.
* Option, these Images were taken with GM85.
Diagnostic Confidence

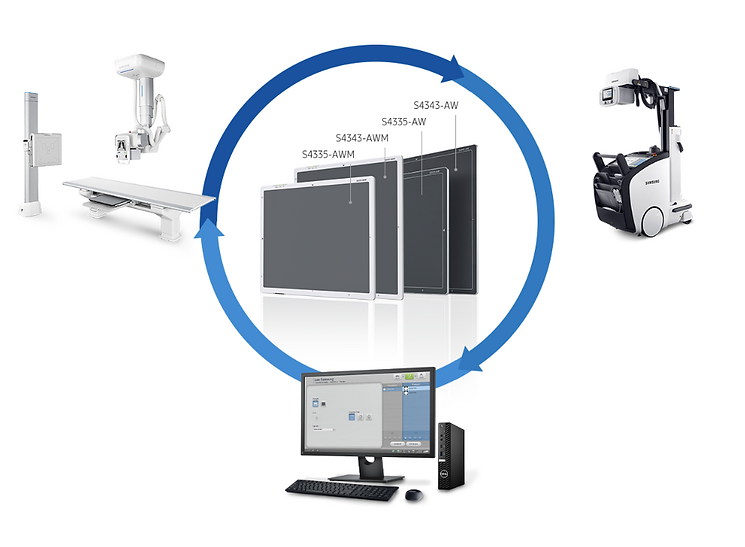

S-Share™*
S-Share™ can dramatically increase efficiency through the use of AccE Detector with various existing compatible equipment.It enables accelerating connection for better synergy with prestige digital radiography systems.
* The S-Share of S4343-AW and S4335-AW, S4335-AWV is available only for AccE GC85A, AccE GM85, and GR40CW.
